flatworm brain growth pattern
© Margarita Khariton et al. / Stanford University
Stanford researchers used advanced microscopy and mathematical modeling to discover a pattern that governs the growth of neurons in the flatworm brain, shown here. Using this technique, they hope to find patterns that guide the growth of cells in other parts of the body in order to pave the way to bioengineer artificial tissues
Stanford researchers used advanced microscopy and mathematical modeling to discover a pattern that governs the growth of neurons in the flatworm brain, shown here. Using this technique, they hope to find patterns that guide the growth of cells in other parts of the body in order to pave the way to bioengineer artificial tissues and organs. Credit: Wang Lab

Life is rife with patterns. It's common for living things to create a repeating series of similar features as they grow: think of feathers that vary slightly in length on a bird's wing or shorter and longer petals on a rose.

It turns out the brain is no different. By employing advanced microscopy and mathematical modeling, Stanford researchers have discovered a pattern that governs the growth of brain cells or neurons. Similar rules could guide the development of other cells within the body, and understanding them could be important for successfully bioengineering artificial tissues and organs.

Their study, published in Nature Physics, builds on the fact that the brain contains many different types of neurons and that it takes several types working in concert to perform any tasks. The researchers wanted to uncover the invisible growth patterns that enable the right kinds of neurons to arrange themselves into the right positions to build a brain.

"How do cells with complementary functions arrange themselves to construct a functioning tissue?" said study co-author Bo Wang, an assistant professor of Bioengineering. "We chose to answer that question by studying a brain because it had been commonly assumed that the brain was too complex to have a simple patterning rule. We surprised ourselves when we discovered there was, in fact, such a rule."

The brain they chose to examine belonged to a planarian, a millimeter-long flatworm that can regrow a new head every time after amputation. First, Wang and Margarita Khariton, a graduate student in his lab, used fluorescent stains to mark different types of neurons in the flatworm. They then used high-resolution microscopes to capture images of the whole brain — glowing neurons and all — and analyzed the patterns to see if they could extract from them the mathematical rules guiding their construction.

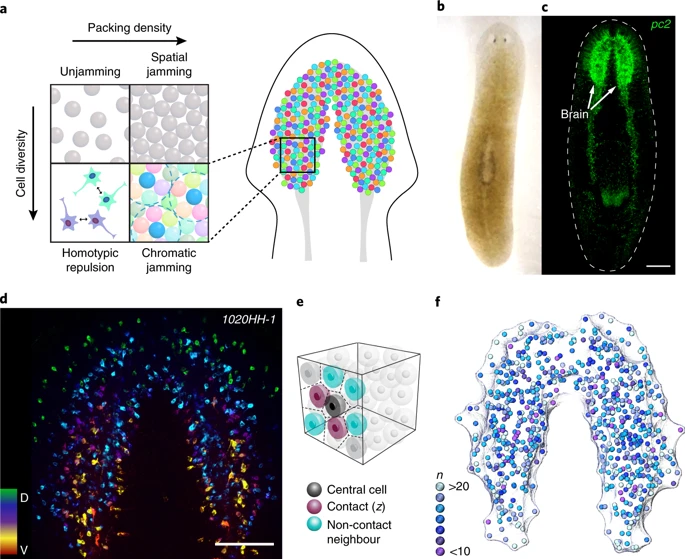

Flatworm brain morphology
© Margarita Khariton, et al.
a, Diagram illustrating particle packing of a system as a function of packing density and cell diversity: low density and diversity give rise to an unjammed system (top left), while increasing the packing density in homogeneous tissues results in the conventional spatially jammed state (top right). Homotypic repulsion (bottom left) gives rise to a chromatically jammed state (bottom right), as in the spatial organization in neural tissues composed of numerous distinct neuronal types. Dashed circles: range of cell type-specific interactions. b, Bright-field image showing the gross morphology of the planarian S. mediterranea. c, Fluorescence microscopy image (maximum intensity projections of confocal stack) depicting the planarian nervous system as stained for the neuronal marker prohormone convertase 2 (pc2), which is expressed in all peptidergic neurons27,29. Scale bar: 200 μm. d, Depth-coloured projection image showing RNA-FISH of neuropeptide 1020HH-1 to reveal the spatial distribution of 1020HH-1+ peptidergic neurons in the planarian brain. Colour map: dorsal to ventral. Scale bar: 100 μm. e, Illustrative diagram of homotypic neighbours and contacts. For a given cell (black), the homotypic nearest neighbours (blue and purple) are defined by adjacent Voronoi tessellation units, and neighbours in geometric contact (purple) are defined as units with touching enclosing spheres. Solid spheres, cell body centroids; translucent zones, range of homotypic repulsion. f, Centroids of 1020HH-1+ peptidergic neurons determined from the image in d. Colours represent n of each individual neuron, measured by Voronoi tessellation.
What they found was that each neuron is surrounded by roughly a dozen neighbors similar to itself, but that interspersed among them are other kinds of neurons. This unique arrangement means that no single neuron sits flush against its twin, while still allowing different types of complementary neurons to be close enough to work together to complete tasks.

The researchers found that this pattern repeats over and over across the entire flatworm brain to form a continuous neural network. Study co-authors Jian Qin, an assistant professor of chemical engineering, and postdoctoral scholar Xian Kong developed a computational model to show that this complex network of functional neighborhoods stems from the tendency of neurons to pack together as closely as possible without being too close to other neurons of the same type.

While neuroscientists might someday adapt this methodology to study neuronal patterning in the human brain, the Stanford researchers believe the technique could be more usefully applied to the emerging field of tissue engineering.

The basic idea is simple: tissue engineers hope to induce stem cells, the powerful, general-purpose cells from which all cell types derive, to grow into the various specialized cells that form a liver, kidney or heart. But scientists will need to arrange those diverse cells into the right patterns if they want the heart to beat.

"The question of how organisms grow into forms that carry out useful functions has fascinated scientists for centuries," Wang said. "In our technological era, we are not limited to understanding these growth patterns at the cellular level but can also find ways to implement these rules for bioengineering applications."

More information: Margarita Khariton et al. Chromatic neuronal jamming in a primitive brain, Nature Physics (2020). DOI: 10.1038/s41567-020-0809-9
