new imaging method
© Daniel Razansky, University and ETH Zurich
A new imaging method can capture images of vasculature deep in the brains of mice. A conventional widefield fluorescence image of the mouse brain taken non-invasively in the visible light spectrum is shown on the left, while the non-invasive localization-based DOLI approach operating in the NIR-II spectral window is shown on the right.
WASHINGTON — Researchers have developed a new technique that allows microscopic fluorescence imaging at four times the depth limit imposed by light diffusion. Fluorescence microscopy is often used to image molecular and cellular details of the brain in animal models of various diseases but, until now, has been limited to small volumes and highly invasive procedures due to intense light scattering by the skin and skull.

"Visualization of biological dynamics in an unperturbed environment, deep in a living organism, is essential for understanding the complex biology of living organisms and progression of diseases," said research team leader Daniel Razansky from the University of Zurich and ETH Zurich, both in Switzerland. "Our study represents the first time that 3D fluorescence microscopy has been performed fully noninvasively at capillary level resolution in an adult mouse brain, effectively covering a field of view of about 1 centimeter."

In Optica, The Optical Society's (OSA) journal for high impact research, the researchers describe their new technique, which is called diffuse optical localization imaging (DOLI). It takes advantage of what is known as the second near-infrared (NIR-II) spectral window from 1000 to 1700 nanometers, which exhibits less scattering.

"Enabling high-resolution optical observations in deep living tissues represents a long-standing goal in the biomedical imaging field," said Razansky. "DOLI's superb resolution for deep-tissue optical observations can provide functional insights into the brain, making it a promising platform for studying neural activity, microcirculation, neurovascular coupling and neurodegeneration."

Quanyu Zhou
© Daniel Razansky, University of Zurich and ETH Zurich

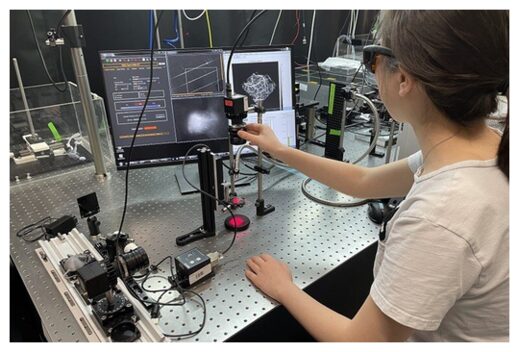

The new technique called diffuse optical localization imaging (DOLI) takes advantage of the NIR-II spectral window from 1000 to 1700 nanometers, which exhibits less scattering. First author Quanyu Zhou is shown with the imaging setup.
Achieving greater depth

For the new technique, the researchers intravenously inject a living mouse with fluorescent microdroplets at a concentration that creates a sparse distribution in the blood stream. Tracking these flowing targets enables reconstruction of a high-resolution map of the deep cerebral microvasculature in the mouse brain.

"The method eliminates background light scattering and is performed with the scalp and skull intact," said Razansky. "Interestingly, we also observed strong dependence of the spot size recorded by the camera on microdroplet's depth in the brain, which enabled depth-resolved imaging."

The new approach benefits from the recent introduction of highly efficient short-wave infrared cameras based on InGaAs sensors. Another key building block was the use of novel contrast agents exhibiting strong fluorescence responses in the NIR-II window, such as lead sulfide (PbS)-based quantum dots.

Crisp and clear imaging

The researchers first tested the new technique in synthetic models of tissue known as tissue phantoms that mimic average brain tissue properties, demonstrating that they could acquire microscopic resolution images at depths of up to 4 millimeters in optically opaque tissues. They then performed DOLI in living mice where cerebral microvasculature as well as blood flow velocity and direction could be visualized entirely noninvasively.

"We expect that DOLI will emerge as a powerful approach for fluorescence imaging of living organisms at previously inaccessible depth and resolution regimes," said Razansky. "This will greatly enhance the in vivo applicability of fluorescence microscopy and tomography techniques."
New Technique
© Daniel Razansky, University of Zurich and ETH Zurich

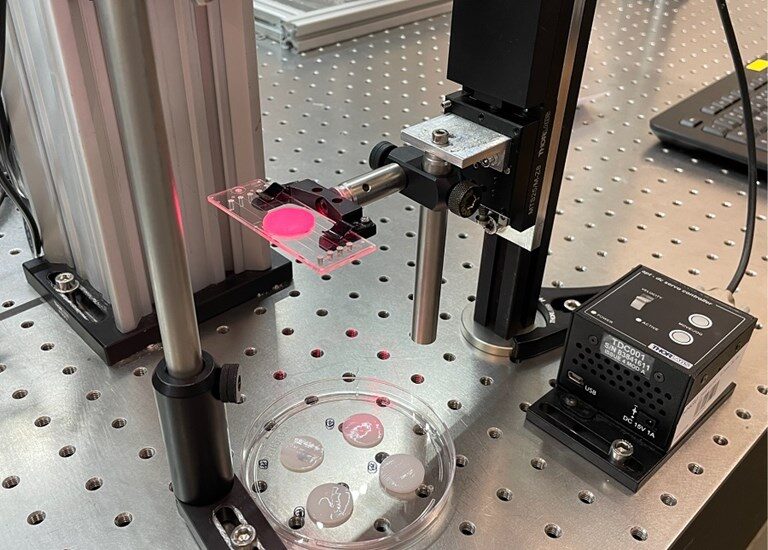

The researchers tested the new technique in tissue phantoms that mimic average brain tissue properties, demonstrating that they could acquire microscopic resolution images at depths of up to 4 millimeters in optically opaque tissues.
Paper: Q. Zhou, Z. Chen, J. Robin, X.-L. Deán-Ben, D. Razansky, "Diffuse optical localization imaging (DOLI) enables noninvasive deep brain microangiography in NIR-II window," Optica, 8, 6, 796-803 (2021).
DOI: https://doi.org/10.1364/OPTICA.420378.
