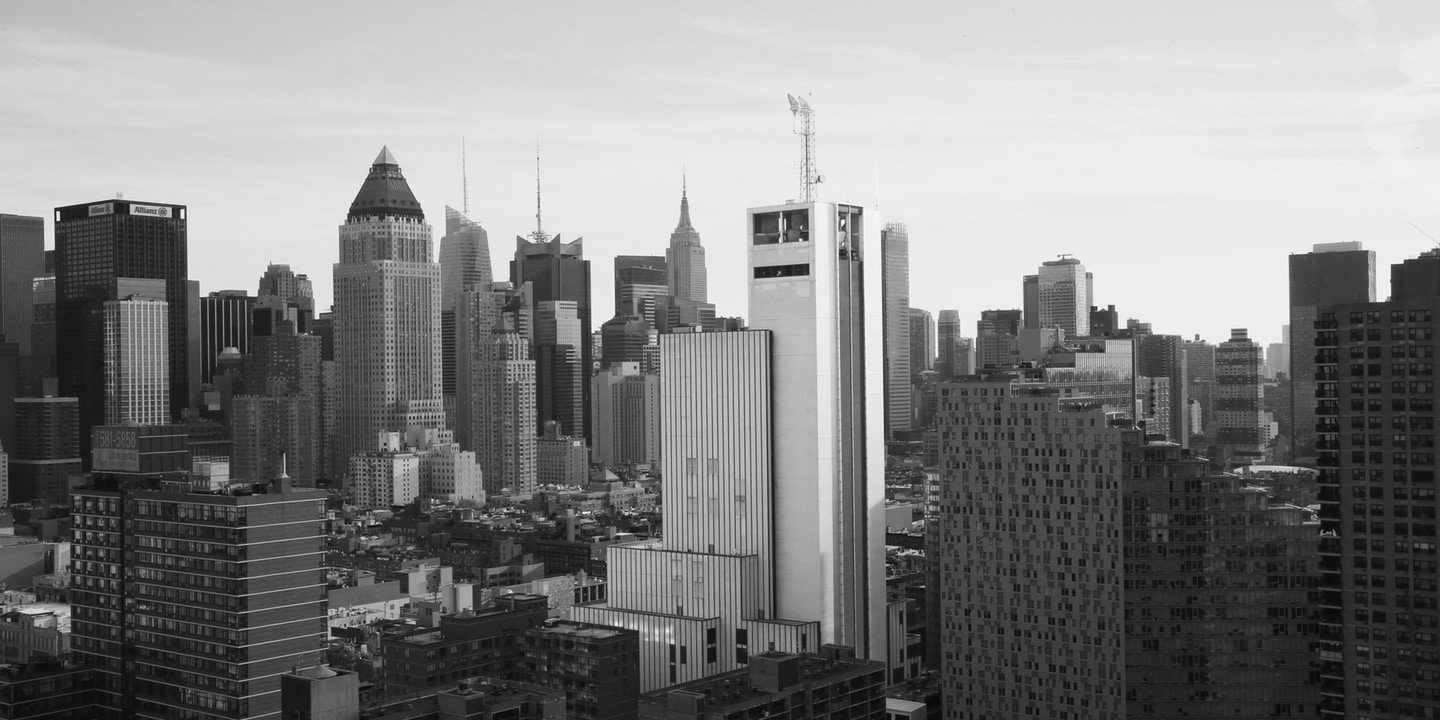

© Steven Day
The secrets are hidden behind fortified walls in cities across the United States, inside towering, windowless skyscrapers and fortress-like concrete structures that were built to withstand earthquakes and even nuclear attack. Thousands of people pass by the buildings each day and rarely give them a second glance, because their function is not publicly known. They are an integral part of one of the world's largest telecommunications networks - and they are also linked to a controversial National Security Agency surveillance program.

Atlanta, Chicago, Dallas, Los Angeles, New York City, San Francisco, Seattle, and Washington, D.C. In each of these cities, The Intercept has identified an AT&T facility containing networking equipment that transports large quantities of internet traffic across the United States and the world. A body of evidence - including classified NSA documents, public records, and interviews with several former AT&T employees - indicates that the buildings are central to an NSA spying initiative that has for years monitored billions of emails, phone calls, and online chats passing across U.S. territory.

The NSA considers AT&T to be one of its most trusted partners and has lauded the company's "extreme willingness to help." It is a collaboration that dates back decades. Little known, however, is that its scope is not restricted to AT&T's customers. According to the NSA's documents, it values AT&T not only because it "has access to information that transits the nation," but also because it maintains unique relationships with other phone and internet providers. The NSA exploits these relationships for surveillance purposes, commandeering AT&T's massive infrastructure and using it as a platform to covertly tap into communications processed by other companies.

NSA 02
Much has previously been reported about the NSA's surveillance programs. But few details have been disclosed about the physical infrastructure that enables the spying. Last year, The Intercept highlighted a likely NSA facility in New York City's Lower Manhattan. Now, we are revealing for the first time a series of other buildings across the U.S. that appear to serve a similar function, as critical parts of one of the world's most powerful electronic eavesdropping systems, hidden in plain sight.

"It's eye-opening and ominous the extent to which this is happening right here on American soil," said Elizabeth Goitein, co-director of the Liberty and National Security Program at the Brennan Center for Justice. "It puts a face on surveillance that we could never think of before in terms of actual buildings and actual facilities in our own cities, in our own backyards."

There are hundreds of AT&T-owned properties scattered across the U.S. The eight identified by The Intercept serve a specific function, processing AT&T customers' data and also carrying large quantities of data from other internet providers. They are known as "backbone" and "peering" facilities.

While network operators would usually prefer to send data through their own networks, often a more direct and cost-efficient path is provided by other providers' infrastructure. If one network in a specific area of the country is overloaded with data traffic, another operator with capacity to spare can sell or exchange bandwidth, reducing the strain on the congested region. This exchange of traffic is called "peering" and is an essential feature of the internet.

Because of AT&T's position as one of the U.S.'s leading telecommunications companies, it has a large network that is frequently used by other providers to transport their customers' data. Companies that "peer" with AT&T include the American telecommunications giants Sprint, Cogent Communications, and Level 3, as well as foreign companies such as Sweden's Telia, India's Tata Communications, Italy's Telecom Italia, and Germany's Deutsche Telekom.

AT&T currently boasts 19,500 "points of presence" in 149 countries where internet traffic is exchanged. But only eight of the company's facilities in the U.S. offer direct access to its "common backbone" - key data routes that carry vast amounts of emails, internet chats, social media updates, and internet browsing sessions. These eight locations are among the most important in AT&T's global network. They are also highly valued by the NSA, documents indicate.

The data exchange between AT&T and other networks initially takes place outside AT&T's control, sources said, at third-party data centers that are owned and operated by companies such as California's Equinix. But the data is then routed - in whole or in part - through the eight AT&T buildings, where the NSA taps into it. By monitoring what it calls the "peering circuits" at the eight sites, the spy agency can collect "not only AT&T's data, they get all the data that's interchanged between AT&T's network and other companies," according to Mark Klein, a former AT&T technician who worked with the company for 22 years. It is an efficient point to conduct internet surveillance, Klein said, "because the peering links, by the nature of the connections, are liable to carry everybody's traffic at one point or another during the day, or the week, or the year."

Christopher Augustine, a spokesperson for the NSA, said in a statement that the agency could "neither confirm nor deny its role in alleged classified intelligence activities." Augustine declined to answer questions about the AT&T facilities, but said that the NSA "conducts its foreign signals intelligence mission under the legal authorities established by Congress and is bound by both policy and law to protect U.S. persons' privacy and civil liberties."

Jim Greer, an AT&T spokesperson, said that AT&T was "required by law to provide information to government and law enforcement entities by complying with court orders, subpoenas, lawful discovery requests, and other legal requirements." He added that the company provides "voluntary assistance to law enforcement when a person's life is in danger and in other immediate, emergency situations. In all cases, we ensure that requests for assistance are valid and that we act in compliance with the law."

Dave Schaeffer, CEO of Cogent Communications, told The Intercept that he had no knowledge of the surveillance at the eight AT&T buildings, but said he believed "the core premise that the NSA or some other agency would like to look at traffic ... at an AT&T facility." He said he suspected that the surveillance is likely carried out on "a limited basis," due to technical and cost constraints. If the NSA were trying to "ubiquitously monitor" data passing across AT&T's networks, Schaeffer added, he would be "extremely concerned."

Sprint, Telia, Tata Communications, Telecom Italia, and Deutsche Telekom did not respond to requests for comment. CenturyLink, which owns Level 3, said it would not discuss "matters of national security."

NSA 3
© NSA/AT&T

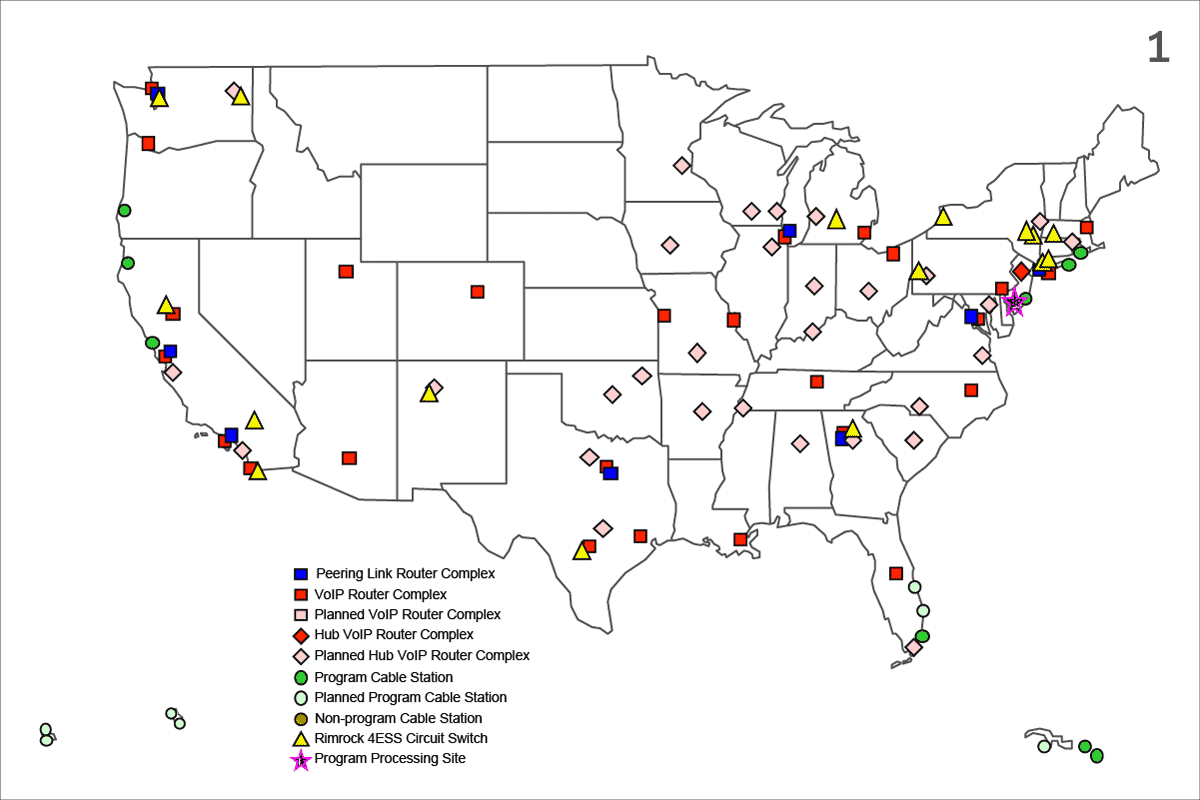

The maps The Intercept used to identify the internet surveillance hubs.
The eight locations are featured on a top-secret NSA map, which depicts U.S. facilities that the agency relies upon for one of its largest surveillance programs, code-named FAIRVIEW. AT&T is the only company involved in FAIRVIEW, which was first established in 1985, according to NSA documents, and involves tapping into international telecommunications cables, routers, and switches.

In 2003, the NSA launched new internet mass surveillance methods, which were pioneered under the FAIRVIEW program. The methods were used by the agency to collect - within a few months - some 400 billion records about people's internet communications and activity, the New York Times previously reported. FAIRVIEW was also forwarding more than 1 million emails every day to a "keyword selection system" at the NSA's Fort Meade headquarters.

Central to the internet spying are eight "peering link router complex" sites, which are pinpointed on the top-secret NSA map. The locations of the sites mirror maps of AT&T's networks, obtained by The Intercept from public records, which show "backbone node with peering" facilities in Atlanta, Chicago, Dallas, Los Angeles, New York City, San Francisco, Seattle, and Washington, D.C.

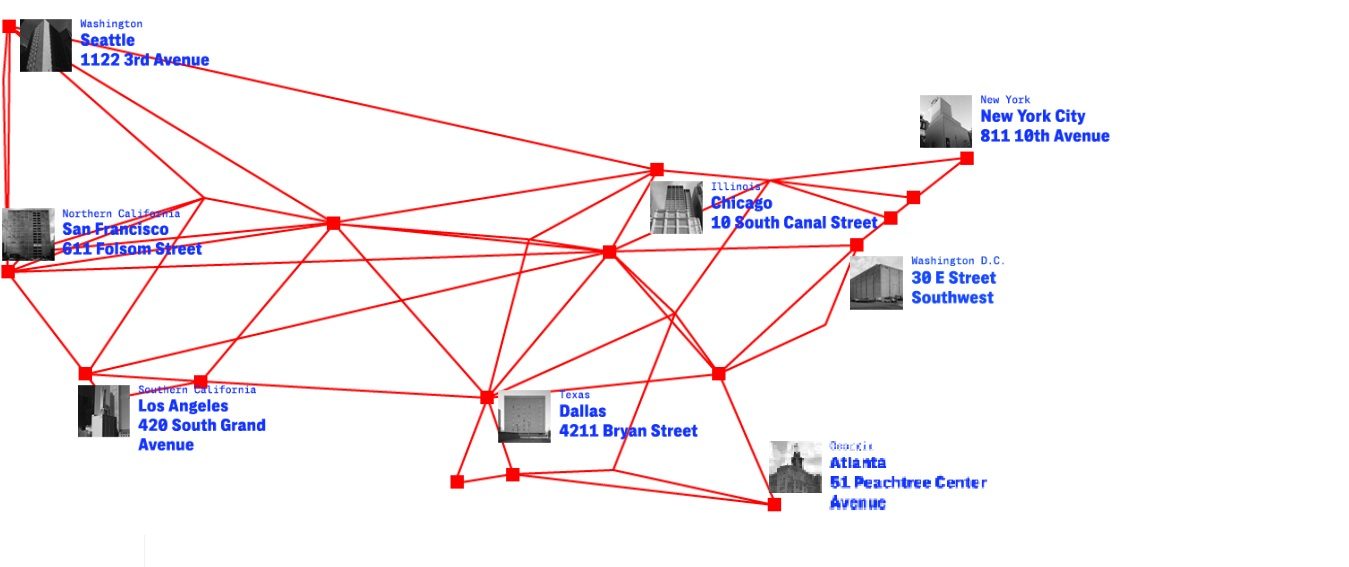

One of the AT&T maps contains unique codes individually identifying the addresses of the facilities in each of the cities.

Among the pinpointed buildings, there is a nuclear blast-resistant, windowless facility in New York City's Hell's Kitchen neighborhood; in Washington, D.C., a fortress-like, concrete structure less than half a mile south of the U.S. Capitol; in Chicago, an earthquake-resistant skyscraper in the West Loop Gate area; in Atlanta, a 429-foot art deco structure in the heart of the city's downtown district; and in Dallas, a cube-like building with narrow windows and large vents on its exterior, located in the Old East district.

Elsewhere, on the west coast of the U.S., there are three more facilities: in downtown Los Angeles, a striking concrete tower near the Walt Disney Concert Hall and the Staples Center, two blocks from the most important internet exchange in the region; in Seattle, a 15-story building with blacked-out windows and reinforced concrete foundations, near the city's waterfront; and in San Francisco's South of Market neighborhood, a building where it was previously claimed that the NSA was monitoring internet traffic from a secure room on the sixth floor.

The peering sites - otherwise known in AT&T parlance as "Service Node Routing Complexes," or SNRCs - were developed following the internet boom in the mid- to late 1990s. By March 2009, the NSA's documents say it was tapping into "peering circuits at the eight SNRCs."

The facilities' purpose was to bolster AT&T's network, improving its reliability and enabling future growth. They were developed under the leadership of an Iranian-American innovator and engineer named Hossein Eslambolchi, who was formerly AT&T's chief technology officer and president of AT&T Labs, a division of the company that focuses on research and development.

Eslambolchi told The Intercept that the project to set up the facilities began after AT&T asked him to help create "the largest internet protocol network in the world." He obliged and began implementing his network design by placing large Cisco routers inside former AT&T phone switching facilities across the U.S. When planning the project, he said he divided AT&T's network into different regions, "and in every quadrant I will have what I will call an SNRC."

During his employment with AT&T, Eslambolchi said he had to take a polygraph test, and he obtained a government security clearance. "I was involved in very, very top, heavy-duty projects for a few of these three-letter agencies," he said, in an apparent reference to U.S. intelligence agencies. "They all loved me."

He would not confirm or deny the exact locations of the eight peering sites identified by The Intercept or discuss the classified work he carried out while with the company. "You put a gun to my head," he said, "I'm not going to tell you."

Other former AT&T employees, however, were more forthcoming.

A former senior member of AT&T's technical staff, who spoke on condition of anonymity due to the sensitivity of the subject, confirmed with "100 percent" certainty the locations of six of the eight peering facilities identified by The Intercept. The source, citing direct knowledge of the facilities and their function, verified the addresses of the buildings in Atlanta, Dallas, Los Angeles, New York City, Seattle, and Washington, D.C.

A second former AT&T employee confirmed the locations of the remaining two sites, in Chicago and San Francisco. "I worked with all of them," said Philip Long, who was employed by AT&T for more than two decades as a technician servicing its networks. Long's work with AT&T was carried out mostly in California, but he said his job required him to be in contact with the company's other facilities across the U.S. In about 2005, Long recalled, he received orders to move "every internet backbone circuit I had in northern California" through the San Francisco AT&T building identified by The Intercept as one of the eight NSA spy hubs. Long said that, at the time, he felt suspicious of the changes, because they were unusual and unnecessary. "We thought we were routing our circuits so that they could grab all the data," he said. "We thought it was the government listening." He retired from his job with AT&T in 2014.

A third former AT&T employee reviewed The Intercept's research and said he believed it accurately identified all eight of the facilities. "The site data certainly seems correct," said Thomas Saunders, who worked as a data networking consultant for AT&T in New York City between 1995 and 2004. "Those nodes aren't going to move."

NSA 4
© Henrik Moltke
An estimated 99 percent of the world's intercontinental internet traffic is transported through hundreds of giant fiber optic cables hidden beneath the world's oceans. A large portion of the data and communications that pass across the cables is routed at one point through the U.S., partly because of the country's location - situated between Europe, the Middle East, and Asia - and partly because of the pre-eminence of American internet companies, which provide services to people globally.

The NSA calls this predicament "home field advantage" - a kind of geographic good fortune. "A target's phone call, email, or chat will take the cheapest path, not the physically most direct path," one agency document explains. "Your target's communications could easily be flowing into and through the U.S."

Once the internet traffic arrives on U.S. soil, it is processed by American companies. And that is why, for the NSA, AT&T is so indispensable. The company claims it has one of the world's most powerful networks, the largest of its kind in the U.S. AT&T routinely handles masses of emails, phone calls, and internet chats. As of March 2018, some 197 petabytes of data - the equivalent of more than 49 trillion pages of text, or 60 billion average-sized mp3 files - traveled across its networks every business day.

The NSA documents, which come from the trove provided to The Intercept by the whistleblower Edward Snowden, describe AT&T as having been "aggressively involved" in aiding the agency's surveillance programs. One example of this appears to have taken place at the eight facilities under a classified initiative called SAGUARO.

As part of SAGUARO, AT&T developed a strategy to help the NSA electronically eavesdrop on internet data from the "peering circuits" at the eight sites, which were said to connect to the "common backbone," major data routes carrying internet traffic.

The company worked with the NSA to rank communications flowing through its networks on the basis of intelligence value, prioritizing data depending on which country it was derived from, according to a top-secret agency document.

NSA 5
© NSA

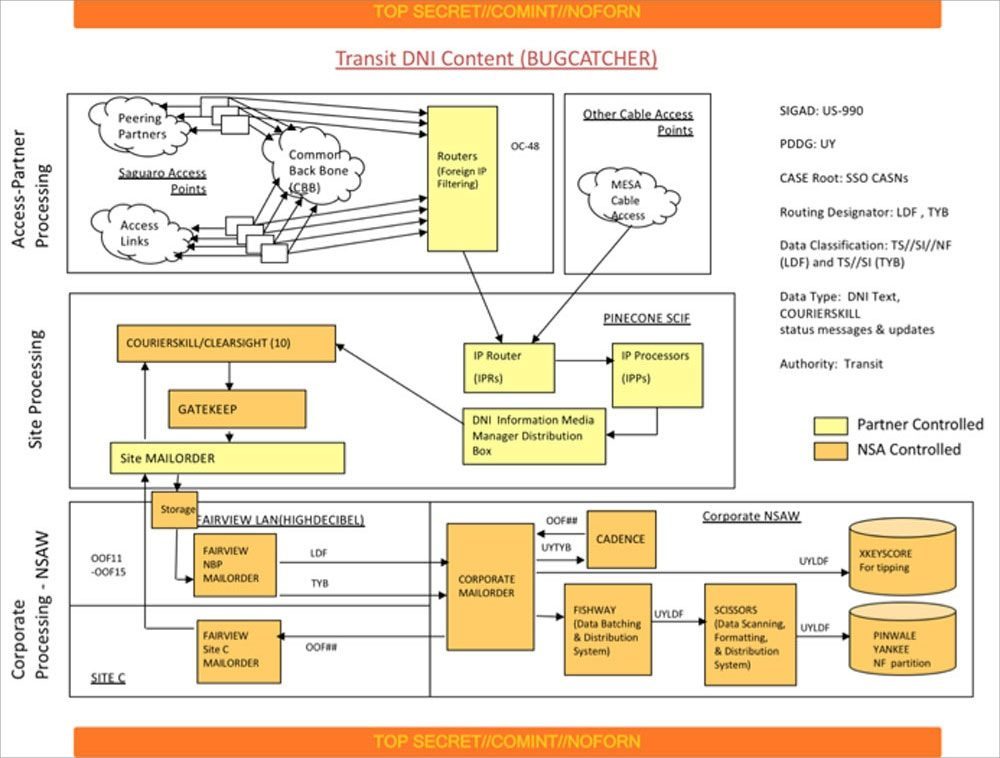

NSA diagrams reveal that after it collects data from AT&T's "access links" and "peering partners," it is sent to a "centralized processing facility" code-named PINECONE, located somewhere in New Jersey. Inside the PINECONE facility, there is a secure space in which there is both NSA-controlled and AT&T-controlled equipment. Internet traffic passes through an AT&T "distribution box" to two NSA systems. From there, the data is then transferred about 200 miles southwest to its final destination: NSA headquarters at Fort Meade in Maryland.

At the Maryland compound, the communications collected from AT&T's networks are integrated into powerful systems called MAINWAY and MARINA, which the NSA uses to analyze metadata - such as the "to" and "from" parts of emails, and the times and dates they were sent. The communications obtained from AT&T are also made accessible through a tool named XKEYSCORE, which NSA employees use to search through the full contents of emails, instant messenger chats, web-browsing histories, webcam photos, information about downloads from online services, and Skype sessions.

NSA 6
© Top left / right: Mike Osborne. Bottom left: Henrik Moltke. Bottom right: Frank Heath
The NSA's primary mission is to gather foreign intelligence. The agency has broad legal powers to monitor emails, phone calls, and other forms of correspondence as they are being transported across the U.S., and it can compel companies such as AT&T to install surveillance equipment within their networks.

Under a Ronald Reagan-era presidential directive - Executive Order 12333 - the NSA has what it calls "transit authority," which it says enables it to eavesdrop on "communications which originate and terminate in foreign countries, but traverse U.S. territory." That could include, for example, an email sent by a person in France to a person in Mexico, which on its way to its destination was routed through a server in California. According to the NSA's documents, it was using AT&T's networks as of March 2013 to gather some 60 million foreign-to-foreign emails every day, 1.8 billion per month.

Without an individualized court order, it is illegal for the NSA to spy on communications that are wholly domestic, such as emails sent back and forth between two Americans living in Texas. However, in the aftermath of the 9/11 attacks, the agency began eavesdropping on Americans' international calls and emails that were passing between the U.S. and other countries. That practice was exposed by the New York Times in 2005 and triggered what became known as the "warrantless wiretapping" scandal.

Critics argued that the surveillance of Americans' international communications was illegal, because the NSA had carried it out without obtaining warrants from a judge and had instead acted on the orders of President George W. Bush. In 2008, Congress weighed into the dispute and controversially authorized elements of the warrantless wiretapping program by enacting Section 702 of the Foreign Intelligence and Surveillance Act, or FISA. The new law allowed the NSA to continue sweeping up Americans' international communications without a warrant, so long as it did so "incidentally" while it was targeting foreigners overseas - for instance, if it was monitoring people in Pakistan, and they were talking with Americans in the U.S. by phone, email, or through an internet chat service.

Within AT&T's networks, there is filtering equipment designed to separate foreign and domestic internet data before it is passed to the NSA, the agency's documents show. Filtering technology is often used by internet providers for security reasons, enabling them to keep tabs on problems with their networks, block out spam, or monitor hacking attacks. But the same tools can be used for government surveillance.

"You can essentially trick the routers into redirecting a small subset of traffic you really care about, which you can monitor in more detail," said Jennifer Rexford, a computer scientist who worked for AT&T Labs between 1996 and 2005.

According to the NSA's documents, it programs its surveillance systems to focus on particular IP addresses - a set of numbers that identify a computer - associated with foreign countries. A classified 2012 memo describes the agency's efforts to use IP addresses to home in on internet data passing between the U.S. and particular "regions of interest," including Iran, Afghanistan, Israel, Nigeria, Pakistan, Yemen, Sudan, Tunisia, Libya, and Egypt. But this process is not an exact science, as people can use privacy or anonymity tools to change or spoof their IP addresses. A person in Israel could use privacy software to masquerade as if they were accessing the internet in the U.S. Likewise, an internet user in the U.S. could make it appear as if they were online in Israel. It is unclear how effective the NSA's systems are at detecting such anomalies.

In October 2011, the Foreign Intelligence Surveillance Court, which approves the surveillance operations carried out under Section 702 of FISA, found that there were "technological limitations" with the agency's internet eavesdropping equipment. It was "generally incapable of distinguishing" between some kinds of data, the court stated. As a consequence, Judge John D. Bates ruled, the NSA had been intercepting the communications of "non-target United States persons and persons in the United States," violating Fourth Amendment protections against unreasonable searches and seizures. The ruling, which was declassified in August 2013, concluded that the agency had acquired some 13 million "internet transactions" during one six-month period, and had unlawfully gathered "tens of thousands of wholly domestic communications" each year.

The root of the issue was that the NSA's technology was not only targeting communications sent to and from specific surveillance targets. Instead, the agency was sweeping up people's emails if they had merely mentioned particular information about surveillance targets.

A top-secret NSA memo about the court's ruling, which has not been disclosed before, explained that the agency was collecting people's messages en masse if a single one were found to contain a "selector" - like an email address or phone number - that featured on a target list.

"One example of this is when a user of a webmail service accesses her inbox; if the inbox contains one email message that contains an NSA tasked selector, NSA will acquire a copy of the entire inbox, not just the individual email message that contains the tasked selector," the memo stated.

The court's ruling left the agency with two options: shut down the spying based on mentions of targets completely, or ensure that protections were put in place to stop the unlawfully collected communications from being reviewed. The NSA chose the latter option, and created a "cautionary banner" that warned its analysts not to read particular messages unless they could confirm that they had been lawfully obtained.

But the cautionary banner did not solve the problem. The NSA's analysts continued to access the same data repositories to search, unlawfully, for information on Americans. In April 2017, the agency publicly acknowledged these violations, which it described as "inadvertent compliance incidents." It said that it would no longer use surveillance programs authorized under Section 702 of FISA to harvest messages that mentioned its targets, citing "technological constraints, United States person privacy interests, and certain difficulties in implementation."

The messages that the NSA had unlawfully collected were swept up using a method of surveillance known as "upstream," which the agency still deploys for other surveillance programs authorized under both Section 702 of FISA and Executive Order 12333. The upstream method involves tapping into communications as they are passing across internet networks - precisely the kind of electronic eavesdropping that appears to have taken place at the eight locations identified by The Intercept.

NSA 7
© Frank Heath
