Chronic diseases have many potential causes, including genetics, deficient diet, toxin exposure, and repressed emotional expression. Research has mounted over the past two decades in support of adding EMF exposure to the top-level list of causes of chronic disease (including genome/DNA damage). It's likely that a chronic disease condition results from a unique and individual combination of these top-level stressors, so EMF exposure should be considered in the context of other source causes, as suggested in Figure 1.

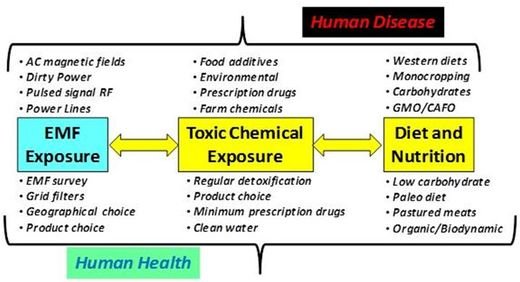

The primary man-made EMFs that have been identified are AC (alternating current) ELF (extra low frequency) electric/magnetic fields associated with power distribution, 'dirty power' (a negative by-product of our switch to 'energy-efficient' appliances, which produces 'transients' - electrical 'spikes' and 'sags') associated with high frequency noise induced in the power grid, and wireless RF (radio frequency) signals originating from a host communication systems - both commercial and military. Every year volumes of studies are published by researchers attempting to quantify the health risks associated with these man-made EMFs. After several decades of concerted study (and much money), the general public perception remains that little of substance has been proven linking EMF exposure with serious negative health consequences. A good part of the responsibility for this lies with the news media and their lack of motivation to inform the public of what these studies really show. Instead, the media plays a role more akin to concealing the truth and delivering lies - the kind we, collectively, prefer to hear.
But there is a complicating factor that detracts from many of these studies. Suppose you are studying the health impacts of cell phone use. You find a cohort/control group consisting of people that have never had or used a cell phone (a tough job in itself these days). You are going to base the results of your study on the health of this cell-free group. But what if some members of this group are exposed to strong dirty power EMF in their home or work environment? The negative health consequences of one kind of EMF exposure (dirty power in this example) dilute the study results of another (cell phone use), making it very difficult to isolate and quantify effects. Throw in more unknowns associated with diet, lifestyle and toxin exposure, and we can see that the control and study groups may have to be very large in order to even detect an EMF signal in the data - let alone quantify the risk. So, in many of these studies, large uncertainties are built-in from the very start.
For these reasons, Dr Samuel Milham decided to take a closer look at data from the turn of the twentieth century to 1960 to see whether or not gradual electrification of the US showed a link to rising deaths from chronic diseases. His results were published in Medical Hypotheses2. He says this about the sources of his data:
"US vital statistics tabulations and census records for 1920 - 1960, and historical US vital statistics documents were examined. Residential electrification data was available in the US census of population for 1930, 1940 and 1950. Crude urban and rural death rates were calculated, and death rates by state were correlated with electrification rates by state for urban and rural areas for 1940 white resident deaths."He gives a snapshot of US electrification progress by 1940:
"Thomas Edison began electrifying New York City in 1880, but by 1920, only 34.7% of all US dwelling units and 1.6% of farms had electric service. By 1940, 78% of all dwelling units and 32% of farms had electric service. This means that in 1940 about three quarters of the US population lived in electrified residences and one quarter did not. By 1940, the US vital registration system was essentially complete, in that all the 48 contiguous United States were included. Most large US cities were electrified by the turn of the century, and by 1940, over 90% of all the residences in the northeastern states and California were electrified. In 1940 almost all urban residents in the US were exposed to electromagnetic fields (EMFs) in their residences and at work, while rural residents were exposed to varying levels of EMFs, depending on the progress of rural electrification in their states."Milham states his hypothesis as follows:
"The diseases of civilization or lifestyle diseases include cardiovascular disease, cancer and diabetes and are thought to be caused by changes in diet, exercise habits, and lifestyle which occur as countries industrialize. I think the critical variable which causes the radical changes in mortality accompanying industrialization is electrification. ... I suggest that from the time that Thomas Edison started his direct current electrical distribution system in the 1880s in New York City until now, when most of the world is electrified, the electricity carried high frequency voltage transients which caused and continue to cause what are considered to be the normal diseases of civilization. Even today, many of these diseases are absent or have very low incidence in places without electricity."That is a strong statement, but his data supports it. I have extracted some data from his paper and present it here in slightly different form in order to better summarize his results for this article. Figure 4 shows both the US cancer rate and percent electrification of residences from 1900 to 1960. The blue diamonds are the cancer rate in 5 year increments in deaths per 100,000 population, and the red squares show the corresponding percent electrification of all residences at the time.

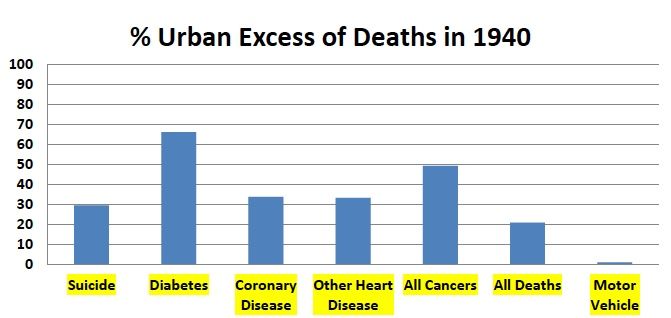

It would be impossible to generate or replicate this kind of data in today's environment. Milham maintains that this correlation strongly suggests causation (see his paper2 for correlation statistics). He also maintains that the causative EMF is noise transients on the power grid (dirty power). I think it's likely that in many homes/businesses, AC magnetic fields also played a role but the two factors are inseparable in this data.

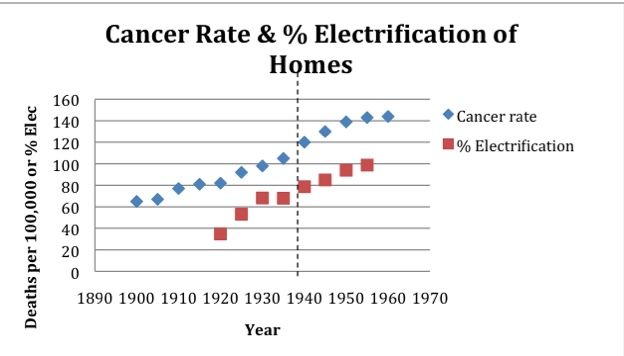

The dashed vertical line in Figure 4 passes through 1940 when 78% of all residences in the US were electrified. By demographics, these were mostly urban. That leaves 22% un-electrified - still a sizeable group of the rural population. Milham broke out the data by disease in 1940 by computing the excess urban deaths over and above the rural population in percent. His results are shown in Figure 5 for various diseases, all deaths, and motor vehicle deaths (for reference) that were recorded in the year 1940.
In conclusion Milham states:
"It seems unbelievable that mortality differences of this magnitude could go unexplained for over 70 years after they were first reported and 40 years after they were noticed. I think that in the early part of the 20th century nobody was looking for answers. By the time EMF epidemiology got started in 1979 the entire population was exposed to EMFs. Cohort studies were therefore using EMF-exposed population statistics to compute expected values, and case-control studies were comparing more exposed cases to less exposed controls."And that would lead to underestimated risk in all subsequent studies. This has, no doubt, played a role in the understated message the public receives regarding the risks of high tech EMF.
It should be noted that Milham does not discuss the likelihood that urban diets (in this time frame) were deficient compared with the rural counterpart, and that this could be a confounding factor in his results. However, the chances that diet alone explains the urban/rural death rate differences in 1940 seems remote.

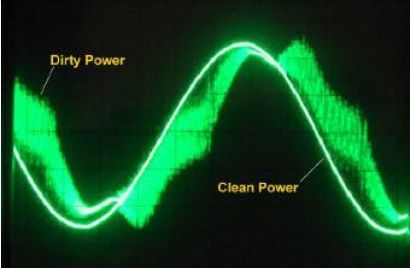

Let's back up for a second and take a closer look at 'dirty power', or 'dirty electricity'. Figure 6 shows oscilloscope traces of two 60Hz AC waveforms; one appearing to be a clean sine wave - the other is a very noisy version with a high frequency hash blurring the otherwise smooth 60Hz wave. The two traces are slightly offset so that both can be seen. The high frequency hash is due to voltage/current transients induced on the grid when the grid energy is rapidly switched on and off to achieve variable input power to some device, motor, or appliance. This rapid switching causes transients at the switch rate and noise harmonics up and down the frequency spectrum. This noise is induced on the 60/50Hz grid and appears at every socket in the home (and your neighbor's home). Most of this noise is contained in the 1-140KHz band. Most modern appliances make use of switching power supplies to provide us with variable speed options for convenience (and advertising purposes).
What is not so well known is that these modern devices can make a dirty mess out of our grid system. The more current draw the device demands, the more noise it will produce when the input power is switched. In today's variable speed devices, this switching is accomplished digitally. Decades ago this was not an option and variable speed (in a motor for example) was accomplished via a mechanical switch between taps on a transformer - the point being that our older appliances were much safer and cleaner with respect to dirty power.
So, all those transformers that we plug into sockets to power various electronic boxes put noise on the grid even if the electronic device is turned off or not plugged in (these transformers are also a significant source of AC magnetic fields while they are plugged into a socket).
How does dirty power affect our health?
This noise in your wiring and at your sockets does not radiate (couple) to free space in the same way that a cell phone antenna radiates the RF cell signal3 - the frequencies are very different (100KHz versus 900-1800MHz). The mechanism is referred to as capacitive coupling and involves objects in the home (including the human body) and their electrical relationship to ground. Capacitive coupling occurs through the electric field where charge (electrons) at one conductor (the electric wires or socket) acts on the charge on another conductor (your body) through a dielectric medium (the air). It can be looked at as if the electrical grid field is always 'seeking' a path to ground.

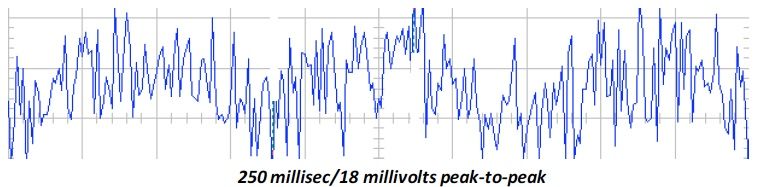

For example, Figure 7 shows a trace from two EKG patches placed on the ankles of a man standing at his kitchen sink4. The time snapshot of the window is 250 millisec and the peak-to-peak voltage swing is about 18 millivolts. Both the noise and 60Hz components can be seen. It is estimated (by modeling) that 80% of the noise energy at frequencies below 1KHz is dissipated in the skin and 20% is dissipated internally; and at frequencies above 2KHz, all the energy is dissipated internally5, 6. This indicates that long-term exposure potential for EMF damage is much greater for the higher frequency components of the dirty power noise.
This may be consistent with the masking of the natural EMF discussed in Part 1 of this article. It may also have to do with disturbance of sensitive electro-chemical metabolic functions and signaling at the sub-cellular level. Even without grounding, the effect can vary depending on geometry and proximity of large metal objects (such as refrigerators, stoves, metal ducting, etc). Notice also in Figure 7 that the high frequency components of the noise (evident in Figure 6) are absent - apparently absorbed in the test subject's body.
this Health Canada report, and a response from Magda Havas. But more on that later, when we discuss all the things you can do to protect yourself from the sources of EMF.
Before leaving the subject of dirty power EMF, another study worth mentioning is one in which a dirty power EMF signal was clearly identified in the cancer statistics of a group of teachers at La Quinta Middle School, California. This case study is described by Milham and Morgan in their 2008 paper, published in the American Journal of Industrial Medicine9:
"In 2003 the teachers at La Quinta, California middle school complained that they had more cancers than would be expected. A consultant for the school district denied that there was a problem. ... Sixteen school teachers in a cohort of 137 teachers hired in 1988 through 2005 were diagnosed with 18 cancers. The observed to expected (O/E) risk ratio for all cancers was 2.78 (P=0.000098), while the O/E risk ratio for malignant melanoma was 9.8 (P=0.0008). Thyroid cancer had a risk ratio of 13.3 (P=0.0098), and uterine cancer had a risk ratio of 9.2 (P=0.019). Sixty Hertz magnetic fields showed no association with cancer incidence. A new exposure metric, high frequency voltage transients, did show a positive correlation to cancer incidence. A cohort cancer incidence analysis of the teacher population showed a positive trend (P=7.1X10 -10) of increasing cancer risk with increasing cumulative exposure to high frequency voltage transients on the classroom's electrical wiring measured with a Graham/Stetzer (G/S) meter. The attributable risk of cancer associated with this exposure was 64%. A single year of employment at this school increased a teacher's cancer risk by 21%."For any teacher at this school assigned to one of the classrooms in which the GS meter hit maximum scale (>2000 GS units), her/his cancer risk increased 26% per year of employment!
The observed to expected risk ratio (O/E) in the above quote is simply the number of observed cancers in the group of teachers divided by the number of expected cancer cases (in the general population or control group). The P-value is the probability of obtaining a test statistic (by chance) at least as extreme as the one that was actually observed - the lower the P-value, the less likely the result is a chance occurrence, and the stronger the correlation with the measured EMF (in GS units). This study (and its results) are unique in that the EMF levels were so high as to swamp out any noise due to control group EMF exposure and other (unknown) exposure factors (diet, toxins, etc)! In all likelihood, the single-source risk of dirty power EMF exposure is much higher than that found in the study. At these levels of dirty power EMF, everyone should be included in the category of 'electrosensitive'.
The authors conclude with:
"The cancer incidence in the teachers at this school is unusually high and is strongly associated with exposure to high frequency voltage transients. In the 28 years since electromagnetic fields (EMFs) were first associated with cancer, a number of exposure metrics have been suggested. If our findings are substantiated, high frequency voltage transients are a new and important exposure metric and a possible universal human carcinogen similar to ionizing radiation."AC Magnetic Fields

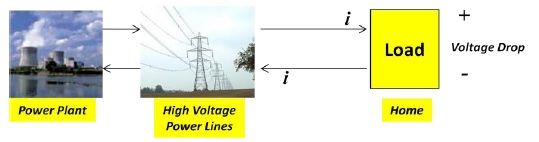

Another EMF associated with power lines and the power grid is AC magnetic fields. To understand the origin of these fields, we need a little basic physics. Figure 8 shows an AC power distribution system from power plant to home user.
Figure 9 shows a current on a long straight wire and the resulting magnetic field that will always accompany the current.
Getting back to the magnetic field, the wire pairs for each home circuit can be run together because the voltage has been stepped down to 120/240V. As long as the wires remain together, there is no net current, and therefore no AC magnetic field. The US National Electric Code (NEC - or your country's equivalent) is very carefully crafted to eliminate net current in all buildings. This is aptly demonstrated by Karl Riley in his book, Tracing EMFs in Building Wiring and Grounding11, in which he describes common wiring errors that can lead to unacceptable AC magnetic fields in the home/office building.
Electricians, just like everyone else, take shortcuts and make mistakes, but in the case of net current, they rarely consider the consequences of the resulting AC magnetic fields on the health of people in the environment - especially children. The majority of NEC inspectors are probably unaware of this as well, and the mistakes are rarely spotted. This is tragic because a simple gauss meter (which measures the magnetic field) and ammeter (which measures net current) can reveal the problem quickly before the wiring is encased in the building's internal structure. Fixing these problems after the fact can be difficult and costly - and you may need a Karl Riley to diagnose, locate, and correct the problem. You can quickly determine if you have a problem with a cheap $40 gauss meter, but more on that later.
When the pair of wires begins to separate, AC magnetic fields develop in the vicinity. All wire pairs must separate widely at the panel box for connection to grid power. This makes the panel box a strong source of AC magnetic fields and explains why you do not want any living areas adjacent to or in the vicinity of the panel box. The wires must also separate at each socket, light fixture, and appliance in the home/office. In the case of appliances, the wires separate internal to the appliance in order to power circuit boards, transformers, heating elements, etc. The more current and separation of the wires, the higher the magnetic field.
Today it is generally and widely accepted that long-term exposure to AC magnetic fields in the range of 3-4 milligauss (0.3-0.4 mT) results in a doubling of the risk for childhood leukemia. It is, therefore, suggested that long-term exposure not exceed 2mG (0.2mT). Many scientists and health organizations suggest that a wider safety margin be applied, reducing this to 0.5-1.0mG (0.05-0.1mT). A healthy safety margin makes sense since there will undoubtedly be periods of much higher exposure, and the dose should be considered cumulative - much like ionizing radiation (radioactivity).
Riley11 relates an interesting (and sad) case study:
"The next case is unusual in that it involves a child who developed leukemia in the first year of his life. I was called in to measure the magnetic fields in his crib room since it was next to the service entrance [panel box] closet in a large Los Angeles estate. I found no unusual field level emanating from the service closet itself, since the equipment was not mounted adjacent to the wall to the child's room, but a substantial magnetic field was coming from an under-floor source which angled out from the service closet location, ran under the crib and exited near the corner of the room. The field at the crib was 4mG and on the floor where the child crawled it was 12mG [1.2mT]. These values were measured during the day when the only loads were the washer and/or dryer. During the evening the field levels would have been much higher.I'll include one more of Riley's case studies because it involves a very common wiring error, with devastating results in this case:
The field was due to a net current on the service lateral [circuit] which ran under the floor. I clamped the ammeter around the copper water supply pipe where it entered the building and found it was carrying amperage. Following my recommendation the owner had a plumber insert a dielectric [insulator] coupling in the water pipe down near the water meter near the curb, which was about 100' from the house. This took the neutral current off the pipe and restored it to the neutral conductor in the service lateral and balanced the magnetic field, thus reducing the magnetic field in the crib room to tenths [of an mG].
The child underwent chemotherapy and for awhile was doing well. Before finishing this revision [of his book] I learned that sadly he had not survived. Was his leukemia due to having been exposed to 4+ mG in his crib and 12+ mG while crawling around on the carpet?"
"I was called in by a family living in a desert community north of Barstow, California, who had experienced a sudden onset of electrosensitivity [ES]. They were sure something was wrong with the house as they could feel burning sensations, etc and had rashes on their hands which puzzled their doctor. A child born while they lived in the house was born with three kinds of brain damage.The footprint of induced ES is very evident in this account. The effect seems very similar to what gluten does to the Celiac sufferer, and makes one wonder: what are these EMFs are doing to the rest of us? To answer that question with any degree of confidence, we may have to factor in toxin exposure and diet - but more on that later.
As this was the first case of electrical hypersensitivity I had come in contact with I was cautious if not a little skeptical. But when I measured the house with the lights on I found elevated fields in the master bedroom, the baby's bedroom, and a field of 82mG at the couch the family gathered together on to watch TV.
After a couple of hours of tracing I found the point where GCs [neutrals] of two circuits had been connected [together]. As mentioned in the text, it was at a duplex receptacle in the master bedroom where one circuit was controlled by a wall switch and the other was always energized. In such receptacles one must break off the tabs connecting the two parts of the receptacle - both the hot tab and the neutral tab. In this case only the hot tab had been broken off. As soon as the receptacle was disconnected the field dropped from 82mG one foot from the wall to below a tenth of a mG at the couch. An 82mG field one foot from the wall is generated by a net current of approximately 12 amps; in this case due mainly to an electric heater used by the family in winter.
Whether the mother's use of this couch for sleep during pregnancy was related to both the birth defects and hypersensitivity is up to medical specialists to sort out. The hypersensitivity was real, as I found by a careful experiment in which I found that the mother was able to tell if a 2mG field was on or off 11 times out of 12, with no external clues from me or the apparatus I used (a covered coil and a silent mercury switch, plus a predetermined randomized on-off sequence)."

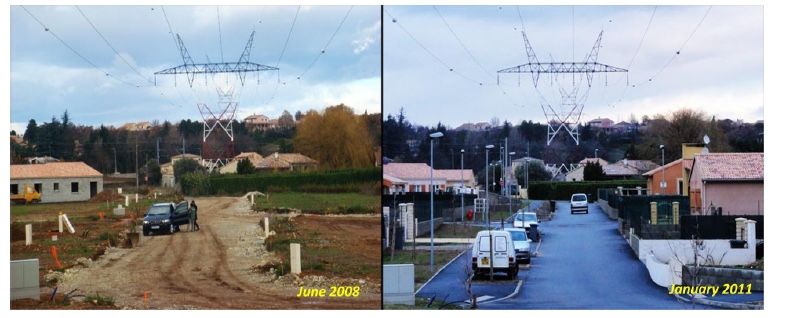

Figure 10 shows a tragedy unfolding in June of 2008 with the construction of a residential neighborhood directly under a high-voltage power line.
There is another EMF source in proximity to high voltage power lines that has received significant attention from researchers Henshaw et al13 due to the fact that epidemiological studies show increased leukemia incidence in areas of extended range from power lines that cannot be explained by direct electric and magnetic fields:
"Recent epidemiological studies have reported an increased risk of leukaemia in adults and children near overhead high voltage powerlines at distances beyond the measured range of the direct electric and magnetic fields. Corona ions are emitted by powerlines, forming a plume that is carried away from the line by the wind. The plume generates random disturbances in the atmospheric electric field of tens to a few hundred V m-1 on time scales from seconds to minutes. Such disturbances can be seen up to several hundred metres from powerlines. It is hypothesised that these random disturbances result in the disruption of nocturnal melatonin synthesis and related circadian rhythms, in turn leading to increased risk of a number of adverse health effects including leukaemia. In support of the hypothesis it is noted that melatonin is highly protective of oxidative damage to the human haemopoietic system. A review of electric field studies provides evidence that (i) diurnal variation in the natural atmospheric electric field may itself act as a weak zeitgeber; (ii) melatonin disruption by electric fields occurs in rats; (iii) in humans, disturbances in circadian rhythms have been observed with artificial fields as low at 2.5 V m-1".The high voltage lines will ionize some of the air particles, and when these waft over local neighborhoods, they cause variations in the electric field. Henshaw has done extensive field testing of this effect near power lines, and his theory explains why leukemia is still elevated so far away from the power lines. It may be that it is the variation of the electric field over time (as opposed to the absolute field value) that has such a marked effect on the biological system. Henshaw has also theorized that the ions can attach to other aerosols (pollution) and that these particles can then be taken into the lungs, with negative health effects.
Epidemiology/statistical studies associated with high voltage power line EMF should be expected to show a significant footprint (against a range of symptoms) since the magnetic and electric fields are so high. Such a study was performed in 2008 in France, by the Centre de Recherche et d'Information Indépendantes sur les Rayonnements Electromagnétiques, along 250km of existing 400KV power lines14. Figure 11 shows the study zone (pink) of the region in France, and three power line routes: 1) a proposed future 400KV line (green), 2) an existing 400KV line running at 75% average capacity (red), and 3) an existing 400KV line running at 40% average capacity (yellow). These three lines were chosen so that one would represent no exposure, a second would represent moderate exposure, and a third would represent high exposure. The zones of exposure for these existing lines were defined as 600 meters around the ground track of the lines (300 meters to either side). Figure 12 shows typical measured results for the electric and magnetic fields under the power lines, as a function of lateral offset. These values will vary depending on load conditions at the time of measurement.

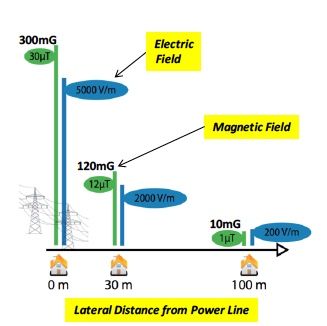

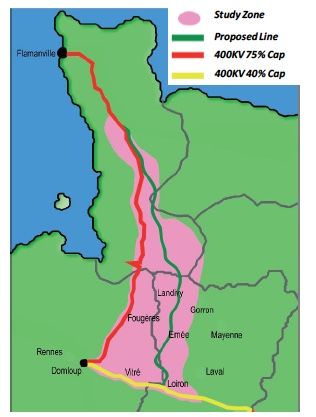

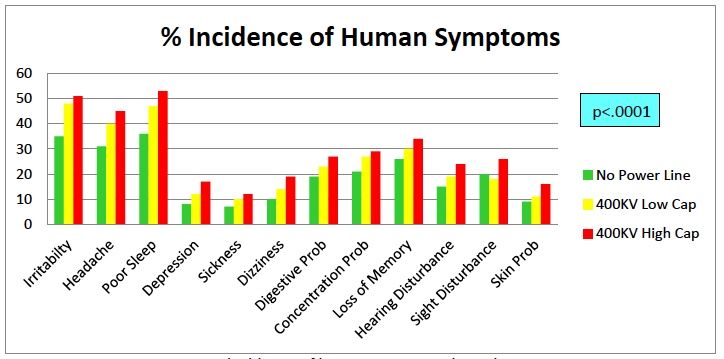

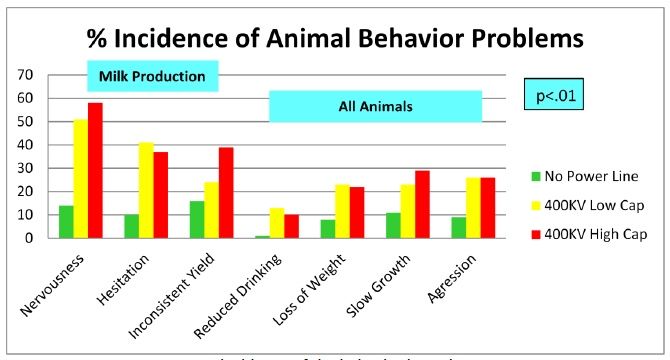

Here we see the same trend - peak incidence occurs in the high capacity exposure group and is still significantly elevated in the low capacity group. Note that psychological depression is reported at nearly twice the incidence for high capacity power line exposure relative to the exposure-free group. Many of these symptoms are associated with ES as well as acute exposure in non-ES individuals. But the percent incidence increase over the unexposed group is not nearly as large as that in the animal groups.
AC Magnetic Fields AND Dirty Power
Henshaw15 has suggested that the high frequency noise associated with dirty power may also act detrimentally through the AC magnetic field even though the field strength may be quite small (very little net current). He suggests that it is the pulsed nature of the transients acting through even a weak AC magnetic field that produces biological effects when exposure is chronic. This is partially based on findings that a patterned (pulsed) magnetic field causes cellular anomalies at levels as low as 0.9mG (.09 mT)16. Henshaw has also referenced epidemiology studies17, 18 that show increased odds ratio for miscarriage when the environmental magnetic field is characterized according to its pulse amplitude as opposed to the time-weighted average. Again, we see that it is the high frequency components of the noise associated with grid power transients that appears to have the greatest biological effect.
This is extremely important because it suggests that dirty power in conjunction with a net current problem may amplify the negative biological effects significantly over and above the effects of either in isolation. So, it is very important to characterize both the AC magnetic field (due to net current sources) as well as grid power noise - and reduce both as much as possible in the living environment.
