Da Vinci's bridge
© Karly Bast and Michelle Xie
Leonardo Da Vinci's original drawing of the bridge included a sailboat passing underneath it. Next to the original drawing, are models created by graduate students Karly Bast and Michelle Xie at MIT that they later 3D-printed.
To test the sturdiness of the bridge, the team 3D printed 126 blocks to represent the thousands of stone blocks the original bridge would have required. Their model was 500 times smaller than da Vinci's bridge design, which would have extended about 919 feet (280 meters).

Though the da Vinci bridge would have been nearly four times shorter than the modern George Washington Bridge and 4.5 times shorter than the Golden Gate Bridge, it would have been the longest of its time, according to the statement. "It's incredibly ambitious," Bast said in the statement. "It was about 10 times longer than typical bridges of that time."

What's more, most bridge supports at the time were designed as a semicircular arch and would have required 10 or more piers to support that length of bridge, according to the statement. But da Vinci's design was a single arch, flattened at the top, that would have been tall enough to allow sailboats to pass underneath.

The researchers put together the 3D-printed blocks using a scaffold, but once they put the "keystone" at the top of the arch, they removed the scaffold, and the bridge kept standing. "It's the power of geometry"; the bridge held together by compression only, she said.

Da Vinci's bridge 2
© Gretchen Ertl

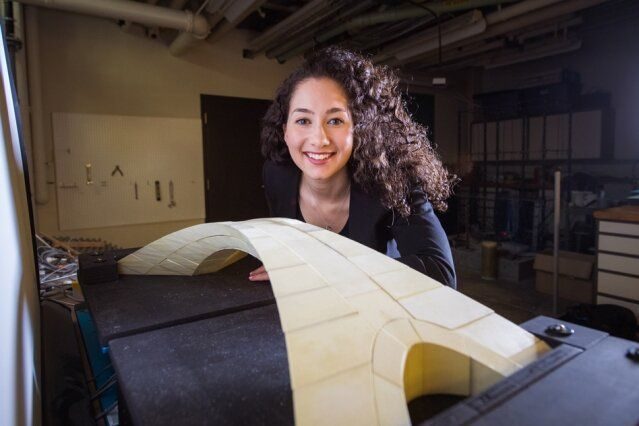

Graduate student Karly Bast sitting next to the model of da Vinci's bridge her and her team built.
Da Vinci's design and the MIT scientists' model also included structures called abutments that extended outward on both sides of the ends of the bridge to stabilize it against side-to-side movements, likely because da Vinci knew the region was prone to earthquakes. Bast and her team built the bridge on two moving platforms. They stimulated what would happen when one platform moved away from the other, as can happen over time when heavy structures are built on weak soil. The bridge was resilient against the movement, though it deformed slightly after being stretched a lot.

"Was this sketch just freehanded, something he did in 50 seconds, or is it something he really sat down and thought deeply about? It's difficult to know," Bast said. But this testing of da Vinci's design suggests that he spent some time carefully thinking about it, she added.

The group presented the results at the International Association for Shell and Spatial Structures conference in Barcelona, Spain, this week. Their research has yet to be published in a peer-reviewed journal.
