Mars north pole
© ESA/DLR/FU-Berlin/Ralf Jaumann
The north polar ice cap of Mars is seen in this mosaic view, which scientists made by combining data from the European Mars Express spacecraft and NASA's Mars Reconnaissance Orbiter. The spiral features help scientists understand how ice ages on Mars work.
Mars is emerging from an ice age, a finding that could shed light on the past and future climates of both Mars and Earth, researchers said.

The orbit of Mars regularly undergoes changes that greatly affect how much sunlight reaches the planet's surface, which in turn can strongly alter the Red Planet's climate. Similar orbital variations called Milankovitch cycles are known to happen on Earth.

Previous Martian climate models suggested that such orbital changes could lead to ice ages on Mars, when ice would cover most of the planet. Now, researchers said they have found evidence of these ice ages on Mars.

Whereas ice ages on Earth involve polar ice caps growing in size, prior work suggested that Martian ice ages would involve shrinking polar ice caps. Meanwhile, on the Red Planet, glaciers at mid-latitudes away from the poles would grow; during the interglacial periods between ice ages, ice would rapidly accumulate at the poles, while mid-latitude glaciers eroded away.

This is because Mars can tilt more than Earth, causing the Red Planet's poles to receive more direct sunlight than its mid-latitudes, making for longer summer days with higher temperatures, said study lead author Isaac Smith, a planetary scientist who did this work at the Southwest Research Institute in Boulder, Colorado, and who is now at the Planetary Science Institute in Tucson, Arizona.

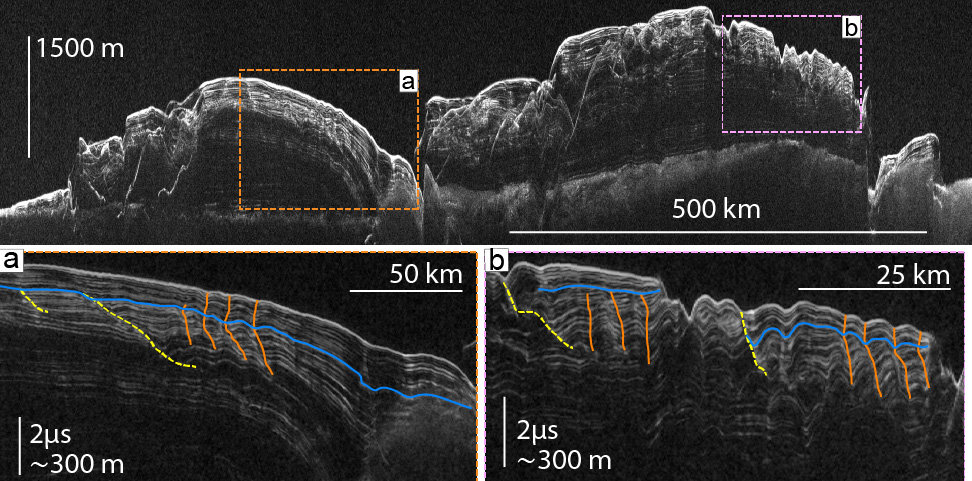

Mars' northern polar ice cap cross section
© Southwest Research Institute
This image shows a two-dimensional cross section of Mars' northern polar ice cap (as seen by the Shallow Radar on NASA's Mars Reconnaissance Orbiter). The top 100- to 300-meter layers of ice show evidence of changes between ice age and inter-glaciel periods.
Hunting an ice age on Mars

To look for evidence of the comings and goings of ice ages, scientists examined radar scans of Mars' polar ice caps taken by the Mars Reconnaissance Orbiter spacecraft. The researchers focused on the extensive layers of ice at the north pole of Mars, since the ice layers at the southern ice cap of Mars are much less extensive.

The researchers detected multiple signs of an ice age and an interglacial period at the northern Martian ice cap. For example, ice ages and interglacial periods would lead to clusters of relatively thin and thick layers of ice, respectively, at the Martian poles. This is what the researchers found in the data. Moreover, as ice erodes, spiral troughs and other distinct features can result within the ice, and the scientists found that the motions of these spiral troughs could sometimes abruptly increase in slope, reverse direction or get completely buried, evidence of ice accumulation and thus changes in climate.

"All around the ice cap, there is evidence for a climate change from ice age to interglacial period," Smith told

The researchers said their findings suggest that Mars recently emerged from an ice age, with ice beginning its retreat about 370,000 years ago. Since then, the scientists estimated that about 20,900 cubic miles (87,000 cubic kilometers) of ice have accumulated at the poles of Mars, enough to cover Mars in about 2 feet (60 centimeters) of ice. Most of this ice accumulated at the north pole of Mars, the researchers added.

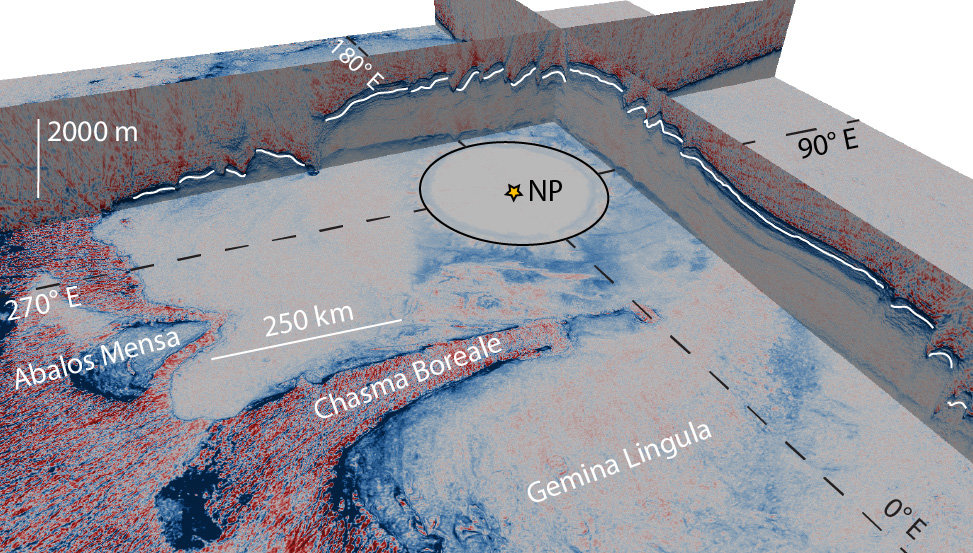

3D view of mars polar ice cap
© Fritz Foss and Nathaniel Putzig
Scientists with the Southwest Research Institute used this 3D perspective view of Mars’ polar ice cap to look for signs of climate change, including an emergence from a recent ice age.
The climate on Mars ... and Earth?

These findings could help fine-tune Martian climate models, the researchers said. "We're still in the beginning phases of really understanding what happens in Martian weather patterns and longer cycles," Smith said. "Observations of current and recent processes keep giving us more information."

Moreover, these findings could help improve models of Earth's climate, he said. "Mars is relevant to Earth, because it has the same processes going on as Earth does, namely Milankovitch cycles," Smith said. "Mars serves as a simplified laboratory for testing climate models and scenarios, without oceans and biology, that we can then use to better understand Earth systems."

Although the researchers found evidence for a past ice age on Mars, Smith noted they still do not perfectly understand the rates at which such events happen. The scientists now want to examine "the lower portions of the north polar ice cap to find evidence of previous glaciations, which we believe are present," Smith said. "We also want to understand the south polar cap better and are working to do that with three-dimensional imaging."
