© Ingo Wölbern, via Wikimedia CommonsMantle plumes, shown in red, have been identified around the world.
Ten years ago, Samer Naif made an unexpected discovery in Earth's mantle: a narrow pocket, proposed to be filled with magma, hidden some 60 kilometers beneath the seafloor of the Cocos Plate.
Mantle melts are buoyant and typically float toward the surface — think underwater volcanoes that erupt to form strings of islands. But Naif's imaging instead showed a clear slice of semi-molten rock: low-degree partial melts, still sandwiched at the base of the plate some 37 miles beneath the ocean floor.
Then, the observation provided an explanation for how tectonic plates can gradually slide, lubricated by partial melting. The study also "raised several questions about why magma is stored in a thin channel — and where the magma originated from," says Naif, an assistant professor in the School of Earth and Atmospheric Sciences at Georgia Institute of Technology.
Fellow researchers went on to share competing interpretations for the cause of the channel — including studies that argued against magma being needed to explain the observation.
So Naif went straight to the source.
"I basically went on a multiyear hunt, akin to a Sherlock Holmes detective story, looking for clues of mantle magmas that we first observed in the 2013 Nature study," he says. "This involved piecing together evidence from several independent sources, including geophysical, geochemical, and geological (direct seafloor sampling) data."
Now, the results of that search are detailed in a new Science Advances article, "Episodic intraplate magmatism fed by a long-lived melt channel of distal plume origin", authored by Naif and researchers from the U.S. Geological Survey at Woods Hole Coastal and Marine Science Center, Northern Arizona University, Lamont-Doherty Earth Observatory of Columbia University, the Department of Geology and Geophysics at Woods Hole Oceanographic Institution, and GNS Science of Lower Hutt, New Zealand.
Zeroing in
A relatively young oceanic plate — some 23 million years old — the Cocos Plate traces down the western coast of Central America, veering west to the Pacific Plate, then north to meet the North American Plate off the Pacific coast of Mexico.

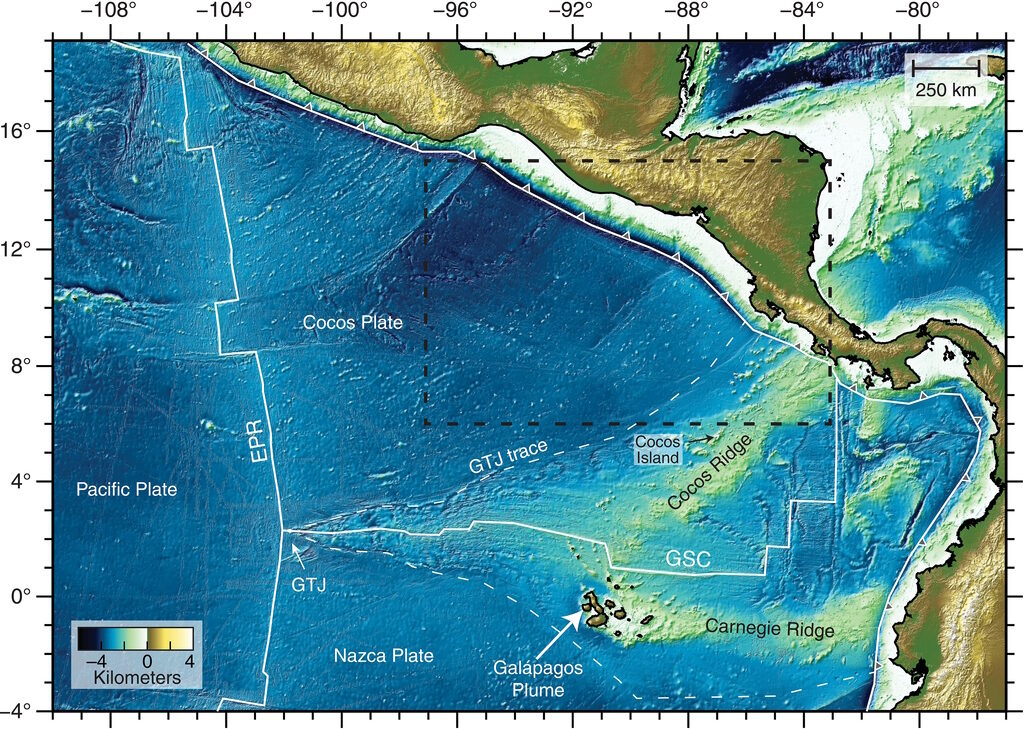

© Samer Naif, Nathaniel C. Miller, et al.The Cocos and Nazca plates are formed at the EPR and the GSC. The Galápagos Triple Junction (GTJ) trace marks the boundary between EPR- and GSC-derived oceanic crusts. The Galápagos Plume is currently centered beneath the Galápagos Islands 200 km south of the GSC and generates two hot spot tracks, the Cocos Ridge and the Carnegie Ridge.
Scientists study the edges of these oceanic plates to understand the history and formation of volcanic chains — and to help researchers and agencies better prepare for future earthquakes and volcanic activity.
It's in this active area that Naif and fellow researchers recently set out to document a series of magmatic intrusions just beneath the seafloor, in the same area that the team first detected the channel of magma back in 2013.
Plumbing the depths
For the new study, the team combined geophysical, geochemical, and seafloor drilling results with seismic reflection data, a technique used to image layers of sediments and rocks below the surface. "It helps us to see the geology where we cannot see it with our own eyes," Naif explains.
First, the researchers observed an abundance of widespread intraplate magmatism. "Volcanism where it is not expected," Naif says, "basically away from plate boundaries: subduction zones and mid-ocean ridges."
Think Hawaii, where "a mantle plume of hot, rising material melts during its ascent, and then forms the Hawaii volcanic chain in the middle of the Pacific Ocean," just as with the Cocos Plate, where the team imaged the volcanism fed by magma at the lithosphere-asthenosphere boundary — the base of the sliding tectonic plates.
"Below it is the convecting mantle," Naif adds. "The tectonic plates are moving around on Earth's surface because they are sliding on the asthenosphere below them."

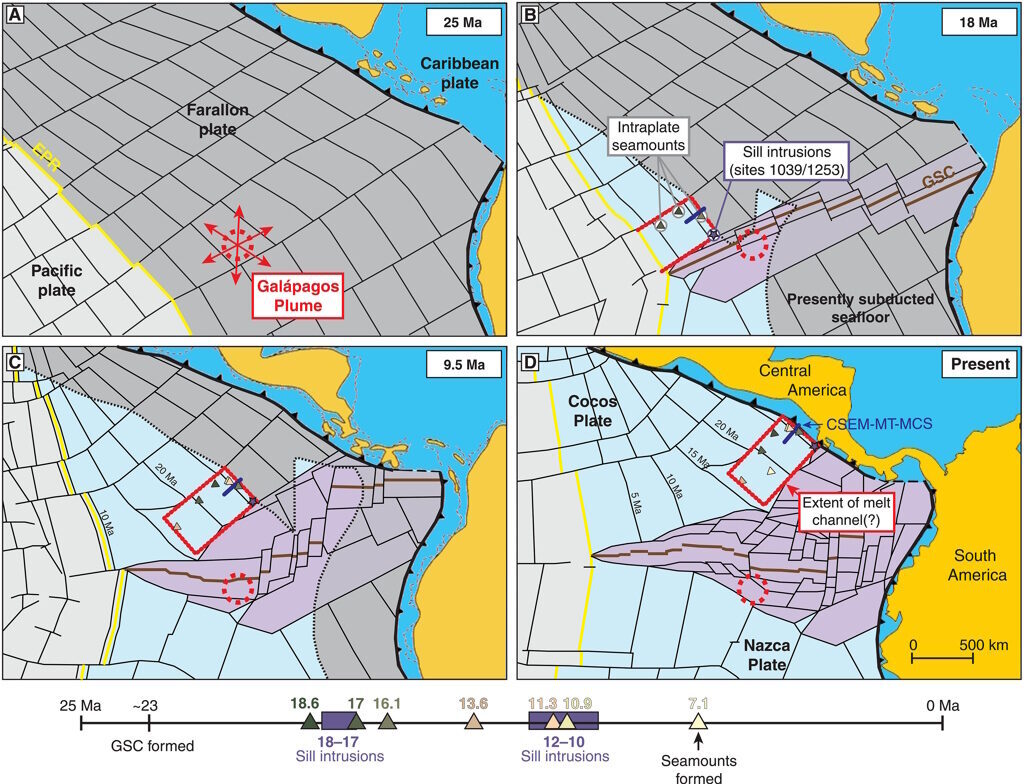

© Samer Naif, Nathaniel C. Miller, et al.(A) Before 23 Ma ago, a pulse of plume material from the Galápagos Plume was advected into the asthenosphere and spread across the region. This plume pulse may have been responsible for the formation of the GSC around ~23 Ma ago, fragmenting the Farallon Plate into the Cocos and Nazca Plates. (B) Partial melting of plume material fed extensive magmatism starting about 18 Ma ago that produced intraplate seamounts and sill intrusions. Plume material had simultaneously reached the EPR, driving a phase of ultrafast spreading and imprinting the plume signature in the oceanic crust. (C) Multiple sill intrusions record a subsequent phase of intraplate magmatism between 12 and 8 Ma ago on the same section of the seafloor. Several seamounts were formed around this time. To date, the most recent intraplate magmatism that has been documented is a seamount that formed 7.1 Ma ago. (D) The regional extent of the present-day melt channel and intraplate magmatism beneath EPR-generated Cocos Plate is inferred from the zone of anomalously shallow bathymetry (Fig. 2A). Plate reconstruction from (35).
Importantly, the new study also suggests that these plume-fed melt channels may be widespread and long-lived sources for intraplate magmatism itself — as well as for mantle metasomatism, which happens when Earth's mantle reacts with fluids to form a suite of minerals from the original rocks.
Connecting the (hot spot) dots
"This confirms that magma was there in the past — and some of it leaked through the mantle and erupted near the seafloor," Naif says, "in the form of sill intrusions and seamounts: basically volcanoes located on the seafloor."
The work also provides compelling supporting evidence that magma could still be stored in the channel. "More surprising is that the erupted magma has a chemical fingerprint that links its source to the Galápagos mantle plume."
"We learned that the magma channel has been around for at least 20 million years, and on occasion some of that magma leaks to the seafloor where it erupts volcanically," Naif adds.
The team's identified source of the magma, the Galápagos Plume, "is more than 1,000 kilometers away from where we detected this volcanism. It is not clear how magma can stay around in the mantle for such a long time, only to leak out episodically."
Plume hunters wanted
The evidence that the team compiled is "really quite subtle and requires a detailed and careful study of a suite of seafloor observations to connect the dots," Naif says. "Basically, the signs of such volcanism, while they are quite clear here, also require high resolution data and several different types of data to be able to detect such subtle seafloor features."
So, "if we can see such subtle clues of volcanism here," Naif explains, "it means a similar, careful analysis of high resolution data in other parts of the seafloor may lead to similar discoveries of volcanism elsewhere, caused by other mantle plumes."
"There are numerous mantle plumes dotted across the planet. There are also numerous seamounts — at least 100,000 of them! — covering the seafloor, and it is anyone's guess how many of them formed in the middle of the tectonic plates because of magma sourced from distant mantle plumes that leaked to the surface."
Naif looks forward to continuing that search, from seafloor to asthenosphere.
Citation: DOI: 10.1126/sciadv.add3761
